Home > Pneumatics > Valve > 2 way Valve
Pneumatics
Valve 2 way Valve
VA2 series VD2 series VDM series VDW series VDSL series VM series VPW series VPSL series
VPSH series VPW(SL)-S series VB series VPW(SL)22 series

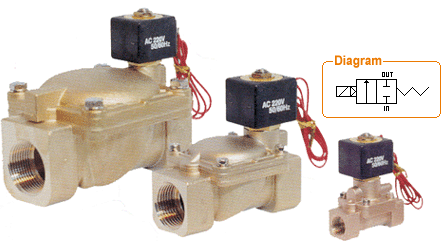

    VPSL series



 (mm)
  L

H

A
VPSL213 72 95 42
VPSL214 72 95 42
VPSL215 104 106 65
VPSL216 104 106 65
VPSL217 145 128 102
VPSL218 145 128 102
VPSL219 172 143 118

  • The pilot form fixes the flux
  • Superior durability
  • LED light
  • Simple conversion for the wiring direction
  • Easily changes real material following the fluid

  • Public specification

Working Fluid

Water,Air,Oil (Less than 50cst) Low steam

Fluid Temp

-10℃ ~ 1 40℃(steam 4㎏/㎠ a, 140℃ )

Atmosphere

-10℃ ~ 60℃ / Less than 90% RH

Coil insulation

standard ; B / Option ; H

Watt

AC 8W / DC 12W

Leakage

0㏄/min

Voltage Fluctuation

±10%

Electrical Connetion

standard ; Lead line/Option ; DIN terminal (PG9)

Conduct

A direct Pilot , Normal cross/Option ; Normal open

Material

Body

Brass

sear

Viton

  • Model specification
VPSL 213 214 215 216 217 218 219
fitting size(PT) 3/8 1/2 3/4 1 1 1/4 1 1/2 2
efrcent area(㎟) 60 60 175 220 540 640 800
Cv 3.5 3.5 9.5 12 30 35 43
orifice size(㎜) 13 13 20 25 25 40 45
working pressure(㎏/㎠) 0.3 ~ 20 0.3 ~ 10
weight(㎏) 0.6 0.6 1.1 1.1 3.1 2.9 4.3
