Home > Pneumatics > Valve > 2 way Valve
Pneumatics
Valve 2 way Valve
VA2 series VD2 series VDM series VDW series VDSL series VM series VPW series VPSL series
VPSH series VPW(SL)-S series VB series VPW(SL)22 series

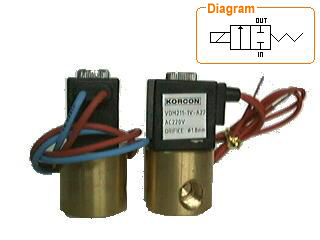

    VDM series

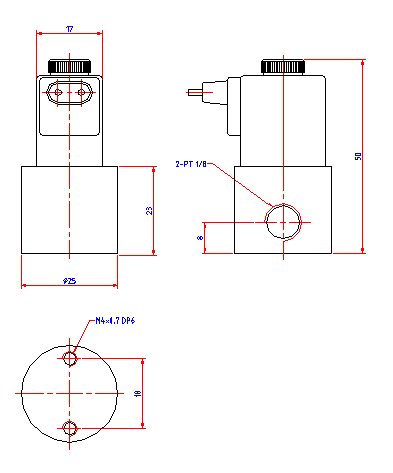

 External Form                            (mm)
  L

H

A
VD212 40 73 28

  • Direct current with minimum trouble
  • Superior durability
  • Simple conversion for the wiring direction
  • Easily changes real material following the fluid
  • You can order for the special manufacture

  • Public specification
Working Fluid Water,Air,Oil (Less than 50cst)
Fluid Temp -10℃ ~ 60℃
Atmosphere -10℃ ~ 60℃ / Less than 90% RH
Coil insulation standard ; B / Option ; H
Watt AC 3W
Leakage 0㏄/min
Voltage Fluctuation ±10%
Electrical Connetion standard ; Lead line
Conduct A direct current, Normally cross
Material Body Brass
sear HNBR /Option ; Viton
  • Model specification
VDM 211
fitting size(PT) 1/8
efrcent area(㎟) 1.8/2.4
Cv 0.10/0.13
orifice size(㎜) 1.5/1.8
working pressure(㎏/㎠) 0 ~ 20/0~7
weight(㎏) 0.112
