Home > Pneumatics > Valve > 2 way Valve
Pneumatics
Valve 2 way Valve
VA2 series VD2 series VDM series VDW series VDSL series VM series VPW series VPSL series
VPSH series VPW(SL)-S series VB series VPW(SL)22 series

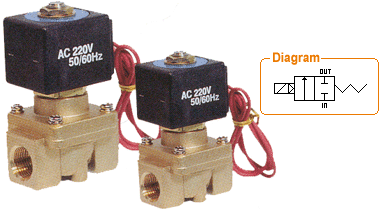

    VDSL series

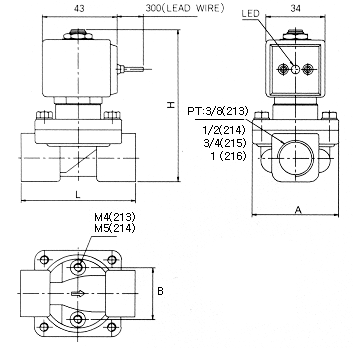

 External Form                            (mm)
  L

H

A B
VDW213 50 85 40 22
VDW214 66 90 50 30
VDW215 80 97 60 -
VDW216 90 104 65 -

  • A direct current without distress
  • Superior durability
  • LED light
  • Simple conversion for the wiring direction
  • Easily changes real material following the fluid

  • Public specification

Working Fluid

Water,Air,Oil (Less than 50cst)

Fluid Temp

-10℃ ~ 140℃(steam 4㎏/㎠ a, 140℃ )

Atmosphere

-10℃ ~ 60℃ / Less than 90% RH

Coil insulation

standard ; B / Option ; H

Watt

AC 8W / DC 12W

Leakage

0㏄/min

Voltage Fluctuation

±10%

Electrical Connetion

standard ; Lead line/Option ; DIN terminal (PG9)

Conduct

A direct current , Normal cross

Material

Body

Brass

sear

Viton

  • Model specification
VDSL 213 214 215 216
fitting size(PT) 3/8 1/2 3/4 1
efrcent area(㎟) 32 76 125 200
Cv 1.8 4.2 6.9 11
orifice size(㎜) 10 15 20 25
working pressure(㎏/㎠) 0 ~ 10 0 ~ 10 0 ~ 10 0 ~ 10
weight(㎏) 0.47 0.55 0.8 1.0
