Home > Pneumatics > Valve > 3 way Valve
Pneumatics
Valve 3 way Valve
VD312 series VE322 series VT312 sereis

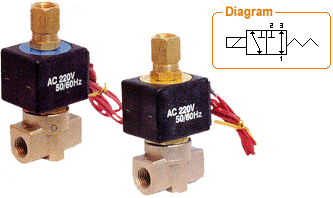

    VD312 series



 External Form                            (mm)
  L H A
VD312 40 93 28

  • Direct current with high pressure
  • Superior durability
  • LED light
  • Simple conversion for the wiring direction
  • Easily changes real material following the fluid

  • Public specification
Working Fluid Water,Air,Oil (Less than 50cst)
Fluid Temp -10℃ ~ 60℃
Atmosphere -10℃ ~ 60℃ / Less than 90% RH
Coil insulation standard ; B / Option ; H
Watt AC 8W / DC 12W
Leakage 0㏄/min
Voltage Fluctuation ±10%
Electrical Connetion standard ; Lead line
Conduct A direct current
Material Body Brass
sear HNBR /Option ; viton, EPDM
  • Model specification
VD 312
fitting size(PT) 1/4
efrcent area(㎟) 1.8 2.7 6.2
Cv 0.10 0.15 0.30
orifice size(㎜) 1.5 2 3
working pressure(㎏/㎠) 0~15 0~10 0~5
weight(㎏) 0.40
