Home > Pneumatics > Valve > 3 way Valve
Pneumatics
Valve 3 way Valve
VD312 series VE322 series VT312 sereis

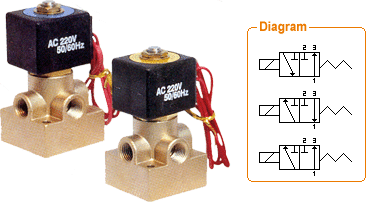

    VT312 sereis



  • Direct current with minimum trouble
  • Superior durability
  • LED light
  • Simple conversion for the wiring direction
  • Easily changes real material following the fluid

  • Public specification
Working Fluid Water,Air,Oil (Less than 50cst)
Fluid Temp -10¡É ~ 60¡É
Atmosphere -10¡É ~ 60¡É / Less than 90% RH
Coil insulation standard ; B / Option ; H
Watt AC 8W / DC 12W
Leakage 0§¦/min
Voltage Fluctuation ¡¾10%
Electrical Connetion standard ; Lead line
Conduct A direct current
Material Body Brass
sear HNBR /Option ; viton, EPDM
  • Model specification
VT 312
fitting size(PT) 1/4
efrcent area(§±) 1.8 2.7
Cv 0.10 0.15
orifice size(§®) 1.5 2.3
working pressure(§¸/§²) 0~15 0~10
weight(§¸) 0.40
