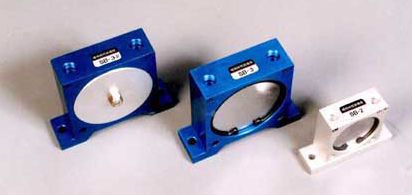

Air Vibrator

Product Features

Use vibration power generated by unbalanced weight's rotation with compressed air.

※Advantages of SB-3-R

Generating uniform vibration by using Rotary Turbine Gear.
Compact size for easy installation.
Minimize the noise.
No risk of gas explosion by using air.
Easy control of vibration.

Applications

Various Hopper, Silo, Bin.
Automatic Mixer.
Automatic Sorter.
Conveying system of various parts and materials.
Auto feeding system in Factory Automation.

Model		SB-2-B	SB-3-B	SB-3-R
Fluid		Air
Operation Pressure		2~9.9Kgf / ㎠

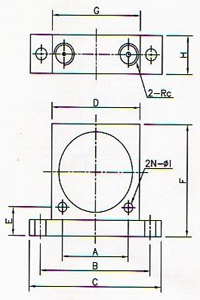

Dimension	A	45	70	70
	B	75	105	105
	C	90	120	120
	D	60	88	88
	E	18	20	20
	F	70	100	100
	G	44	65	65
	H	24	32	32
	I	6.5	9	9
	Rc	PT1/4	PT1/4	PT1/4
