Booster cylinderAIR - HYD - CYLINDER

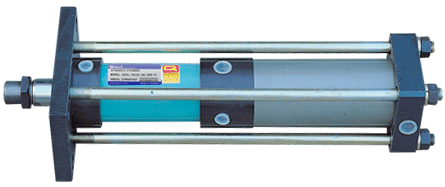

Booster cylinder

The special type as cylinder can exert output force by oil press.
It is a kind of cylinder depend on air press, at end of stroke cause
Bigger output force as clinching, band, assemble and compacting form craft.
The power stroke have no relation with move distance, it is start at the moment of oil load begin, the Max. power stroke is 8 mm.

How to order

Specifications

Specification Item	AB-3	AB-5	AB-10	AB-15	AB-20	AB-30	AB-40
Output force	3 Ton	5Ton	10Ton	15Ton	20Ton	30Ton	40Ton
Rate of adding press	1:20	1:21	1:25	1:25	1:27	1:31	1:32
Working fluid	Compress air
Range if using press	3 ~ 5kgf/㎠
Proof. Press	15kgf/㎠
Bore	∮63	∮80	∮100	∮125	∮140	∮160	∮180

※ The output force is base on 5kgf/㎠(commonly using press).
※ The product is the compressure booster cylinder.
※ The mounting type have SD/FA/FB/LB only.
※ Direct compressed type cam ordering also(inquire us, please).
※ Non - standard type can order also(inquire us, please).

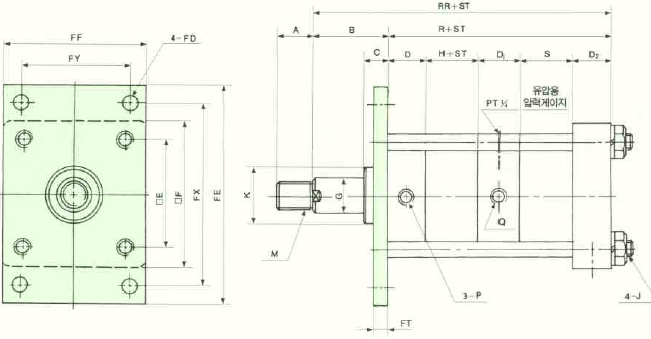

AB type

[unit : mm]

	A	B	G	M	E	F	J	C	K	P	Q	D	D1	D2	FX	FY	FE	FF	FD	H	S	R	RR	FT
3Ton	35	51	∮35	M30x1.5P	80	110	M16x1.5P	20	∮55	PT3/8	PT1/2	34	66	32	155	87	190	118	∮18	57	171	360	411	21
5Ton	60	60	∮45	M39x1.5P	102	135	M18x1.5P	20	∮65	PT1/2	PT3/4	34	70	30	190	109	230	150	∮22	60	210	404	464	24
10Ton	75	60	∮55	M48x1.5P	122	165	M22x1.5P	30	∮80	PT1/2	PT3/4	35	75	37	224	130	272	175	∮26	65	209	421	481	27
15Ton	80	60	∮60	M56x2P	130	175	M22x1.5P	41	∮85	PT1/2	PT1	40	83	43	250	145	300	195	∮26	70	245	481	541	31
20Ton	80	70	∮65	M60x2P	148	196	M27x1.5P	45	∮90	PT3/4	PT1	40	83	43	270	155	320	210	∮30	76	295	537	607	35
30Ton	95	80	∮70	M64x2P	164	225	M27x1.5P	47	∮95	PT3/4	PT1	40	88	40	315	185	375	243	∮33	83	295	581	661	39
40Ton	110	84	∮90	M80x2P	200	262	M33x1.5P	54	∮115	PT3/4	PT1	50	93	40	355	206	425	272	∮36	90	310	586	667	44
