| Hydraulic cylinder for lifter |
 |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Hydraulic cylinder for lifter※ If you want to order, please inquire us
|

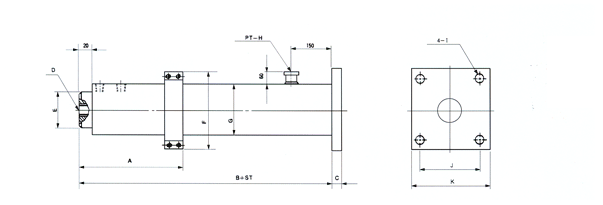

| Bore Mark | A | B | C | D | E | F | G | H | I | J | K |
|---|---|---|---|---|---|---|---|---|---|---|---|
| ∮60 | 116 | 170 | 20 | M30 | ∮60 | 200 | ∮101.6 | PT1/2 | ∮14 | □140 | □200 |
| ∮80 | 151 | 238 | 20 | M30 | ∮80 | 230 | ∮133 | PT1 | ∮16 | □160 | □230 |
| ∮100 | 170 | 247 | 20 | M30 | ∮100 | 250 | ∮153 | PT1/4 | ∮22 | □160 | □230 |
| ∮140 | 198 | 285 | 30 | M36 | ∮140 | 300 | ∮194 | PT1/4 | ∮22 | □220 | □290 |
| ∮160 | 198 | 285 | 30 | M36 | ∮160 | 330 | ∮216.5 | PT1/4 | ∮24 | □260 | □340 |
| ∮180 | 306 | 412 | 30 | M36 | ∮180 | 360 | ∮244.5 | PT1/4 | ∮26 | □260 | □340 |
