Shock AbsorberHydro Check
KHC 24 series KHC 31/38 series EP check unit

    KHC 31,38 Series



    KHC 31, 38 Series, a controller of uniform motion, controls precise speed and position. As well, they can even control minutely a speed of all the moving devices.

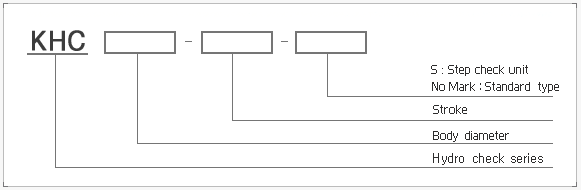

  • Ordering Information

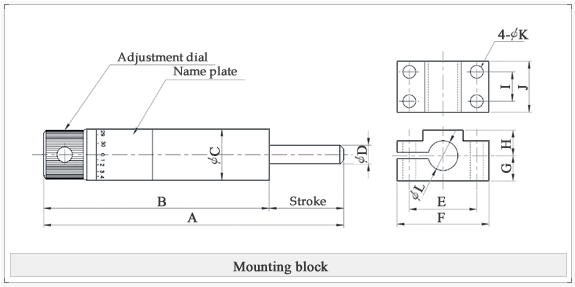

  • Dimensions
[unit : mm]

Model

Stroke

(mm)
S

Dimensions

Max
load angle from axis(°)

Speed adjustment range

A

B

C

D

E

F

G

H

I

J

K

L

Load limits

Feed rate limits

;

KHC 3140

40

270

230

31

12

42

58

20

20

24

40

6.6

31

1 °

450~3500N

0.2~30
mm/sec





KHC 3160

60

335

275

0.5 °





KHC 31100

100

455

355

0.3 °





KHC 3860

60

327

260

38

14

76

94

24

24

34

50

8.6

38

0.5 °

1500~5000N

0.3~30

mm/sec





KHC 38100

100

433

333

0.3 °
