Shock Absorber
Shock AbsorberHydraulic Buffer
KHS series KHG series Accessories

    KHG series



    KHG Series, as for the heavy industry & a self-adjusting type, absorb a gigantic impact energy comparing their small size by the dint of interaction between special oil and nitrogen gas.
    Compressed nitrogen gas makes the piston rod come out of the cylinder.

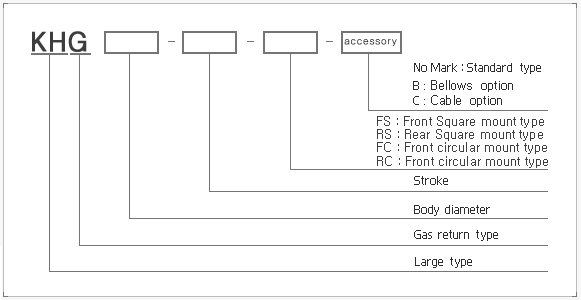

  • Ordering Information
  • Engineering Datal
[unit : mm]

Model

Stroke

(mm)

S

Max energy

buffer/Stroke

(kJ)EK

Max energy

absortion/Hour

(kJ/h)ETC

Max buffer

force

(kN)FM

Static reset

Max side load angle(°)

Weight
(kg)

Extend

(kN)

Compression

(kN)

R Type

F Type

KHG 80 - 50

50

8

600

176

1.5

10

4.0

3.5

12

-100

100

16

1,200

176

13

3.0

3.0

15

-150

150

24

1,800

176

17

2.0

2.0

18

-200

200

32

2,400

176

19

1.8

1.5

20

-250

250

40

2,850

176

20

1.5

1.2

22

KHG 100-100

100

23

1,600

250

2.4

16

5.0

4.0

25

-150

150

34.5

2,300

250

20

4.5

3.5

28

-200

200

46

3,100

250

20

4.0

3.0

34

-250

250

58

3,600

250

25

3.5

2.5

39

-300

300

69

4,200

240

25

3.0

2.0

43

KHG 120-100

100

45

2,900

500

3.5

38

4.0

4.5

41

-150

150

70

4,400

500

38

4.0

3.5

48

-200

200

92

5,800

500

38

3.5

3.5

58

-250

250

114

7,200

500

40

3.0

3.0

65

-300

300

130

8,500

470

40

3.0

2.5

72

-400

400

160

10,000

440

40

2.5

2.0

78

-500

500

180

115,000

390

40

2.0

1.5

86

KHG 140-100

100

62

3,800

680

5.5

38

4.5

4.0

60

-150

150

91

5,800

660

65

4.5

4.0

72

-200

200

124

9,800

680

70

4.0

3.5

85

-300

300

175

12,000

640

70

3.5

2.5

110

-400

400

234

15,000

640

78

2.5

1.5

135

-500

500

270

16,000

600

78

2.0

1.3

150

KHG 180-400

400

260

14,000

700

8

90

4.5

4.0

168

-500

500

316

17,000

650

100

4.0

3.5

198

-600

600

370

20,000

650

100

3.5

3.0

235

-800

800

450

25,000

600

100

3.0

2.5

295

-1000

1,000

580

27,500

600

110

2.5

2.0

354

  • Dimensions
[unit : mm]

Model

A

B

C

D

E

F

G

H

N-1

Weight

(kg)























KHS  90 -050

240

190

90

78

30

130

100

16

4-14

8.5









            -100

360

260

12























KHS 130 -070

295

225

130

98

35

170

130

20

4-22

16









            -150

490

340

19























KHS 170 -080

380

300

170

98

50

220

170

22

4-28

38









            -150

550

400

46























KHS 190 -100

440

340

190

98

60

250

190

25

4-34

48









            -150

610

460

60























KHS 250 -100

505

405

250

138

70

410

350

36

8-28

130











            -300

750

450

158

160























KHS 340 -250

920

670

340

228

100

460

400

40

8-28

250
