Home > Cleaning System > Air Line Equipment > Air Cleaning Equipment
Cleaning System
Air Line Equipment Air Cleaning Equipment
SAFF SAMG SAFL SAM SAMD SAMH SAI SAD Accessory for micro filter (Bracket, Filter)

    SAFF

    -Free Filter



    SAFF series installed in the latter part of air driers prolong the expected life span of precaution filter and prevent the troubles of machinery by separating the impurities such as moisture, oil, other foreign substances from the compressed air.


  1. Symbol
  2. How to Order
  3. Specification
  4. Precautions
    • Filter element should be changed after 2 years of using or when pressure drops to 1.0kgf/§².
    • When auto drain is used : Drain piping should be both 4mm or greater in diameter and less than 1m in length. Also should avoid setting drain piping upwards.
    • When auto drain is out of order, it is possible to drain manually by operating one-touch-fitting vertically.
    • With a drain cock attached, drain can be done when the head of liquid is shown at the glass indication tube.

    SAMG

    -Drain Seperator



  • SAMG series filter aims at eliminating moisture.
  • SAMG Series eliminate moisture up to 99% at the area of inlet of pneumatic machinery equipment and at the last stage of using air in the workroom.
  • SAMG Series are effective to the place such as
    ¨ç which does not have to be dry as much as air drier.
    ¨è which is not able to install air drier for its restriction.

  1. Symbol
  2. How to Order
  3. Specification
  4. Precautions
    • Filter element should be changed after 2 years of using or when pressure drops to 1.0kgf/§².
    • When auto drain is used : Drain piping should be both 4mm or greater in diameter and less than 1m in length. Also should avoid setting drain piping upwards.
    • When auto drain is out of order, it is possible to drain manually by operating one-touch-fitting vertically.
    • With a drain cock attached, drain can be done when the head of liquid is shown at the glass indication tube.
    • Place as much far as possible from a air compressor and use at low temperature.

    SAFL

    -Line Filter



    SAFL series installed in the main line improve the function of later drier, prolong the expected life span of precision filter and prevent the troubles of machinery by eliminating the impurities such as moisture, oil, other foreign substances from the compressed air.


  1. Symbol
  2. How to Order
  3. Specification
  4. Precautions
    • Filter element should be changed after 2 years of using or when pressure drops to 1.0kgf/§².
    • When auto drain is used : Drain piping should be both 4mm or greater in diameter and less than 1m in length. Also should avoid setting drain piping upwards.
    • When auto drain is out of order, it is possible to drain manually by operating one-touch-fitting vertically.
    • With a drain cock attached, drain can be done when the head of liquid is shown at the glass indication tube.

    SAM

    -Mist Separator



    SAM series eliminate micro-particle like rust, carbon 0f 0.3§­ or greater, etc. by separating oil mist that is difficult to be removed by normal air filters.
    SAM series are the optimal filter for the air source that drives solenoid valves of pilot type, and metal seal type.


  1. Symbol

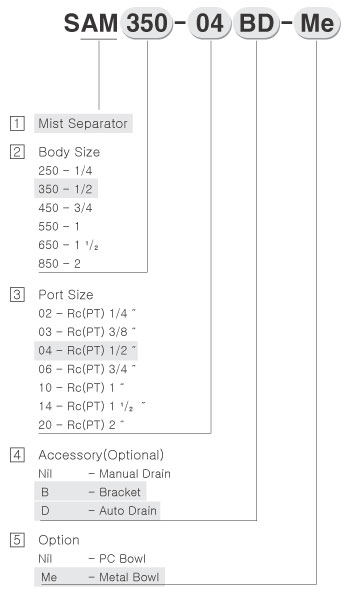

  2. How to Order
  3. Specification
  4. Precautions
    • Filter element should be changed after 2 years of using or when pressure drops to 1.0kgf/§².
    • When auto drain is used : Drain piping should be both 4mm or greater in diameter and less than 1m in length. Also should avoid setting drain piping upwards.
    • When auto drain is out of order, it is possible to drain manually by operating one-touch-fitting vertically.
    • With a drain cock attached, drain can be done when the head of liquid is shown at the glass indication tube..

    SAMD

    -Micro Mist Separator



    SAMD series separate and remove the oil particles or carbon and dust particles of size 0.01§­ or greater in the air sol state.
    Accordingly SAMD series are ideal for filtering the compressed air necessary for precision measuring instruments and clean room.


  1. Symbol

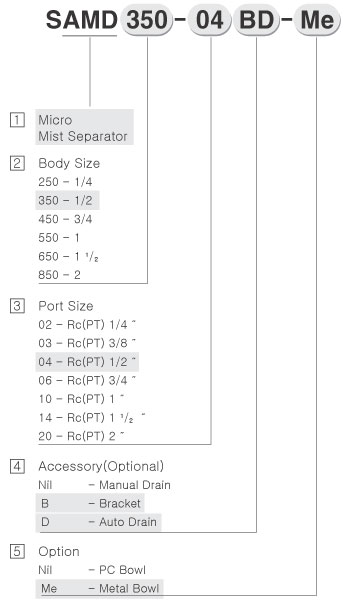

  2. How to Order

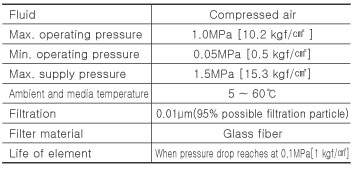

  3. Specification
  4. Precautions
    • Filter element should be changed after 2 years of using or when pressure drops to 1.0kgf/§².
    • When auto drain is used : Drain piping should be both 4mm or greater in diameter and less than 1m in length. Also should avoid setting drain piping upwards.
    • When auto drain is out of order, it is possible to drain manually by operating one-touch-fitting vertically.
    • With a drain cock attached, drain can be done when the head of liquid is shown at the glass indication tube..

    SAMH

    -Free Filer Micro Separator



    SAMH series are the combination of the usual AM series(0.3§­) and AMD series(0.01§­).

    SAMH series enable high precision filtration therefore SAMH series are compatible to air micro measuring instrument and drying and cleanliness of precision parts.


  1. Symbol
  2. How to Order
  3. Specification
  4. Precautions
    • Filter element should be changed after 2 years of using or when pressure drops to 1.0kgf/§².
    • When auto drain is used : Drain piping should be both 4mm or greater in diameter and less than 1m in length. Also should avoid setting drain piping upwards.
    • When auto drain is out of order, it is possible to drain manually by operating one-touch-fitting vertically.
    • With a drain cock attached, drain can be done when the head of liquid is shown at the glass indication tube..

    SAI

    -Air Inlet



    SAI series are clean system that effectively eliminate various impurities in the compressed air from a compressor.
    SAI series are the combination of the air filter for dehumidification, the mist separator for eliminating micro particles like rust,carbon, etc. of size 0.3§­ by separating oil mist, and the micro-mist separator for eliminating dust and carbon of 0.01§­ by separating oil in air sol state.
    SAI series are high performance clean filter system protect expensive equipments and instruments by supplying compressed air necessary for high quality painting, precision measurements and clean rooms.


  1. Symbol
  2. How to Order
  3. Specification
  4. Precautions
    • Filter element should be changed after 2 years of using or when pressure drops to 1.0kgf/§².
    • When auto drain is used : Drain piping should be both 4mm or greater in diameter and less than 1m in length. Also should avoid setting drain piping upwards.
    • When auto drain is out of order, it is possible to drain manually by operating one-touch-fitting vertically.
    • With a drain cock attached, drain can be done when the head of liquid is shown at the glass indication tube..

    SAD

    -Auto Drain Valve



    SAD series enable the condensed water in the compressed air line to be drained automatically.
    SAD series are possible to operate manually.


  1. Symbol
  2. How to Order
  3. Specification
  4. Precautions
    • Drain piping should be both 4§® or greater in diameter and less than 1m in length.
      Also should avoid upwards setting of drain piping and should be allowed the drainage to be on the wall surface of hose.
    • The drainage hose installed should be straight.
    • When auto drain is out of order, it is possible to drain manually by operating one-touch-fitting vertically.

    Accessory for micro filter (Bracket, Filter)

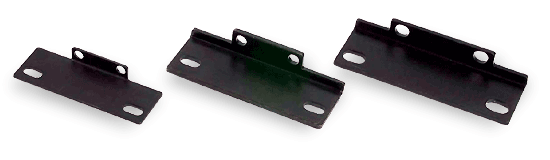

  1. Bracket
    • Dimensions (mm)
  2. Filter
    • Filter Standard
